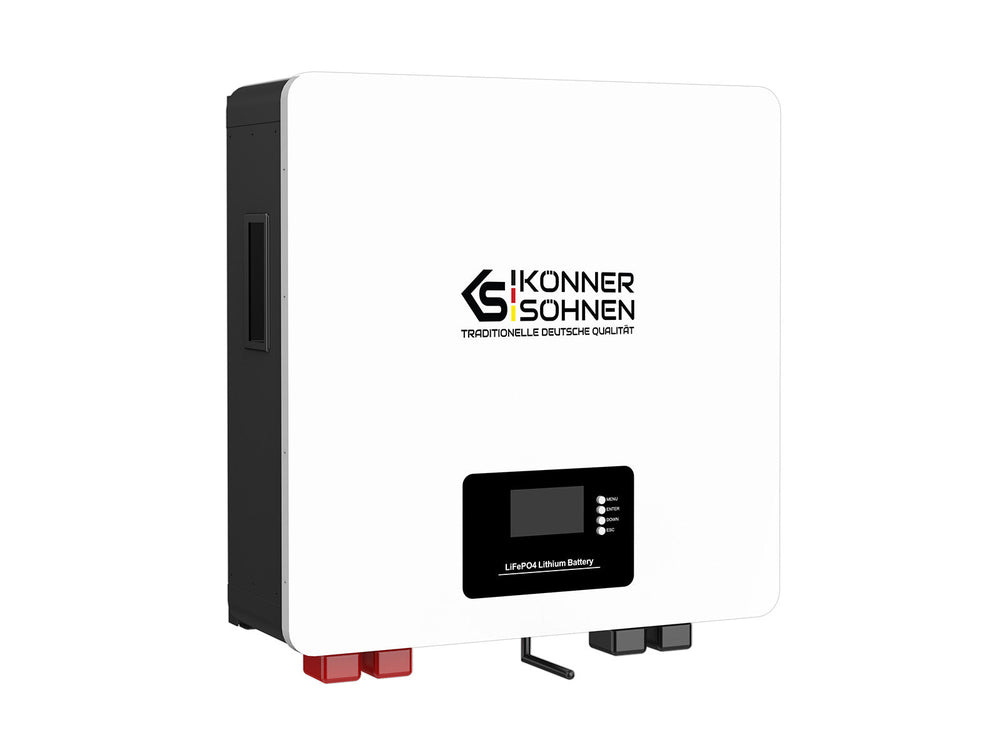

Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
Lithium battery KS LB 24–100
372.347 Ft
Lithium battery KS LB 24–100
372.347 Ft

Lithium battery KS LB 24–100

Unavailable
372.347 Ft

Specification

Battery type: LifePo4 (lithium iron phosphate battery)
Rated voltage, V: 25.6
Max charging/discharging current: 100A (1С)

Delivery

  • Free shipping: receive your order in just 1-5 business days.
Delivery

Shippers:

  • DPD (Parcel shipping)
  • GLS (Parcel shipping)
  • Dachser (Pallet shipping)
  • DHL

Shipping Costs:

All product prices include shipping costs and VAT. Island deliveries, we calculate the costs based on the effort and prior arrangement. Please contact us via email at shop@dimaxgroup.de

Delivery Times:

Unless otherwise specified in the respective offer, delivery within Germany takes place within 1 to 5 days, and for international deliveries within 7 days after the conclusion of the contract. Please note that there is no delivery on Sundays and public holidays.

Transport Damage:

In case of transport damage, you can find more on this page "Behavior in the event of transport damage".

Payment

  • We offer a wide range of secure and convenient payment methods, including:
  • visa
  • maestro
Payment

Security and Data Protection:

Your security is our top priority. We use Shopify Payments, one of the most secure payment platforms, to process your transactions. Your payment data is transmitted via an encrypted connection and is never stored on our servers. You can rest assured that your data is fully protected with us.

Shipping and Payment

We ship your order immediately after successful payment, ensuring you receive your products as quickly as possible. Please ensure that payment is made promptly to avoid delays and to have your order in your hands in the shortest possible time.

Refunds:

We want you to be completely satisfied. That's why we offer a 30-day return policy after you receive your order. If a product does not meet your expectations, you will of course receive a full refund. In the case of a refund, it will be processed quickly and easily through your original payment method. Please note that it may take a few days for the refund to be credited depending on the payment provider.To learn more about the easy return process, check this page "[[PAGE]]".

Features

The latest energy-saving systems – Lithium-Iron-Phosphate batteries from Könner & Söhnen® – are modern energy storage devices, making them an ideal choice for solar power plants and other backup power systems, as well as for uninterruptible power supply systems.

≤6000 charge-discharge cycles

The modern, reliable LiFePO4 batteries from Könner & Söhnen® provide an incredible 6,000 charge-discharge cycles, which means over 15 years of daily use!
Equipped with a multi-level protection system, including protection against overheating and short circuits, they are non-flammable, making them extremely safe to use.

LiFePO4 batteries

LiFePO4 batteries are more resistant to extreme temperatures and can operate in a wider temperature range (from -10°C to +45°C). This makes them an excellent choice for use in extreme conditions.
They have a low self-discharge rate, enabling them to retain energy for long periods without losing performance.

15 YEARS
OF DAILY USE
MAXIMUM
SAFETY
RELIABILITY
AND DURABILITY
COST
SAVINGS

ADVANTAGES OF LITHIUM BATTERIES

HIGH POWER

Compared to conventional lead-acid batteries, LiFePO4 can handle higher currents both during charging and discharging, ensuring an incredibly fast charge replenishment rate and enabling their effective operation under high current loads.

HIGH CAPACITY AND ENERGY DENSITY

LiFePO4 technology ensures long-lasting high capacity over many years of use, providing a higher energy density for storing more energy in a smaller volume.

THE SAFEST BATTERY

Equipped with maximum multi-level protection for all necessary parameters, resistant to overloads, overvoltage, and overheating, and do not explode when overheated.

LONGEVITY

Capable of withstanding an incredible number of charge-discharge cycles, with a lifespan of up to 15 years.

FLEXIBLE INSTALLATION

Can be installed in various ways: vertically on a wall or horizontally on a trolley, saving space and offering a convenient solution based on individual needs.

COMPREHENSIVE SMART BMS PROTECTION SYSTEM

Current overload
Overcharge
Overdischarge
Short circuit
Overheating

Könner & Söhnen® batteries are equipped with a multi-level protection system – SMART BMS (Battery Management System). This system uses a special computer and sensors to monitor and regulate battery operation. The sensors test temperature current, battery capacity, etc. The main purpose of the system is to ensure safe battery use, stable operation, and extended battery life.

ADVANTAGES OF THE BMS SYSTEM

  • General control of the maximum charging and discharging current of the battery
  • Voltage control for each cell to prevent overcharging and over-discharging
  • Balancing of individual cells, activated in the upper voltage range of the cell, to equalize the charge levels of separate cells.
  • Temperature control at multiple points of the battery – protection against overheating (prevents explosion when overheated)

FEATURES

Wi-Fi
for connection to a smartphone
and remote control of the system, as well
as monitoring its status through the app
Up to 15 modules
in parallel connection

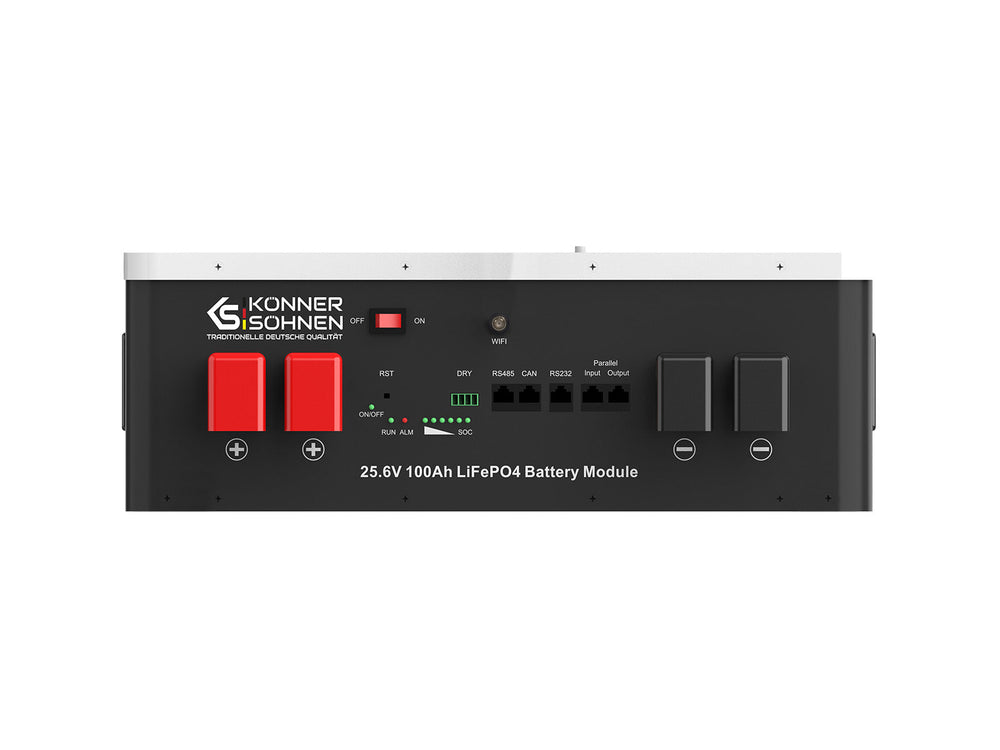

Communication ports
RS485, CAN, RS232
for connecting to inverters and PCs

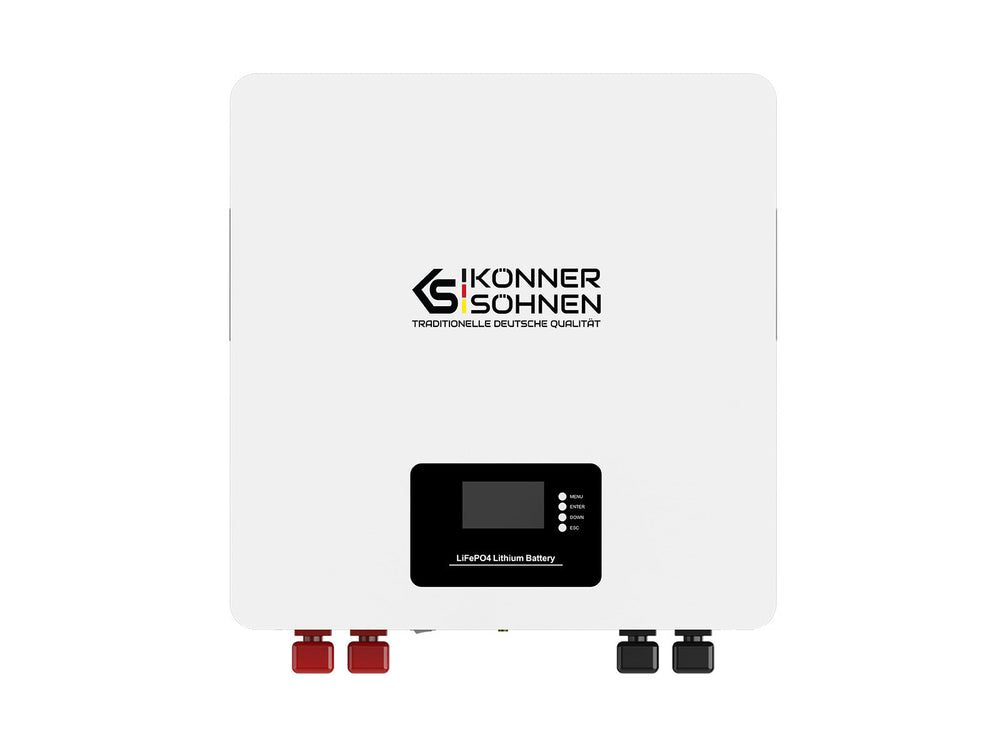

LCD Display
for setting and monitoring the main
operating parameters of the battery
SMART BMS
Battery Management System
multi-level protection

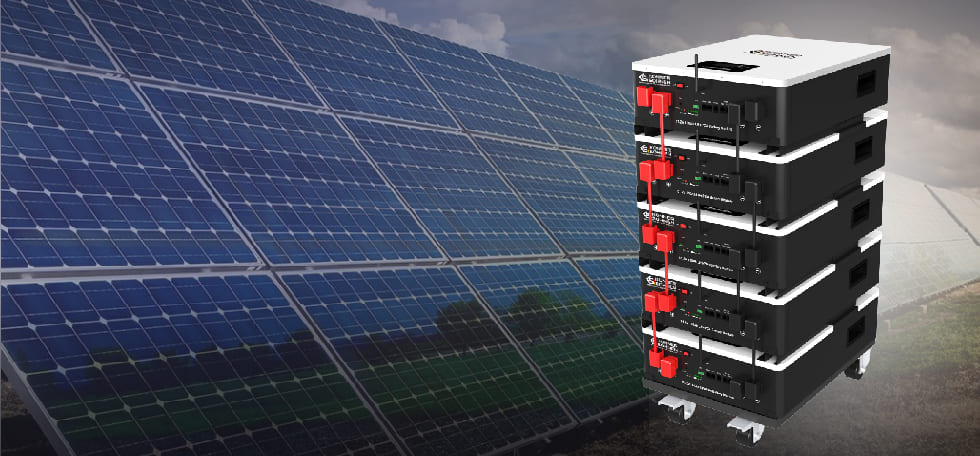

SCALABLE UP TO 15 MODULES

IN PARALLEL CONNECTION

MODULAR DESIGN ENABLES A SIGNIFICANT CAPACITY INCREASE BY ADDING MODULES

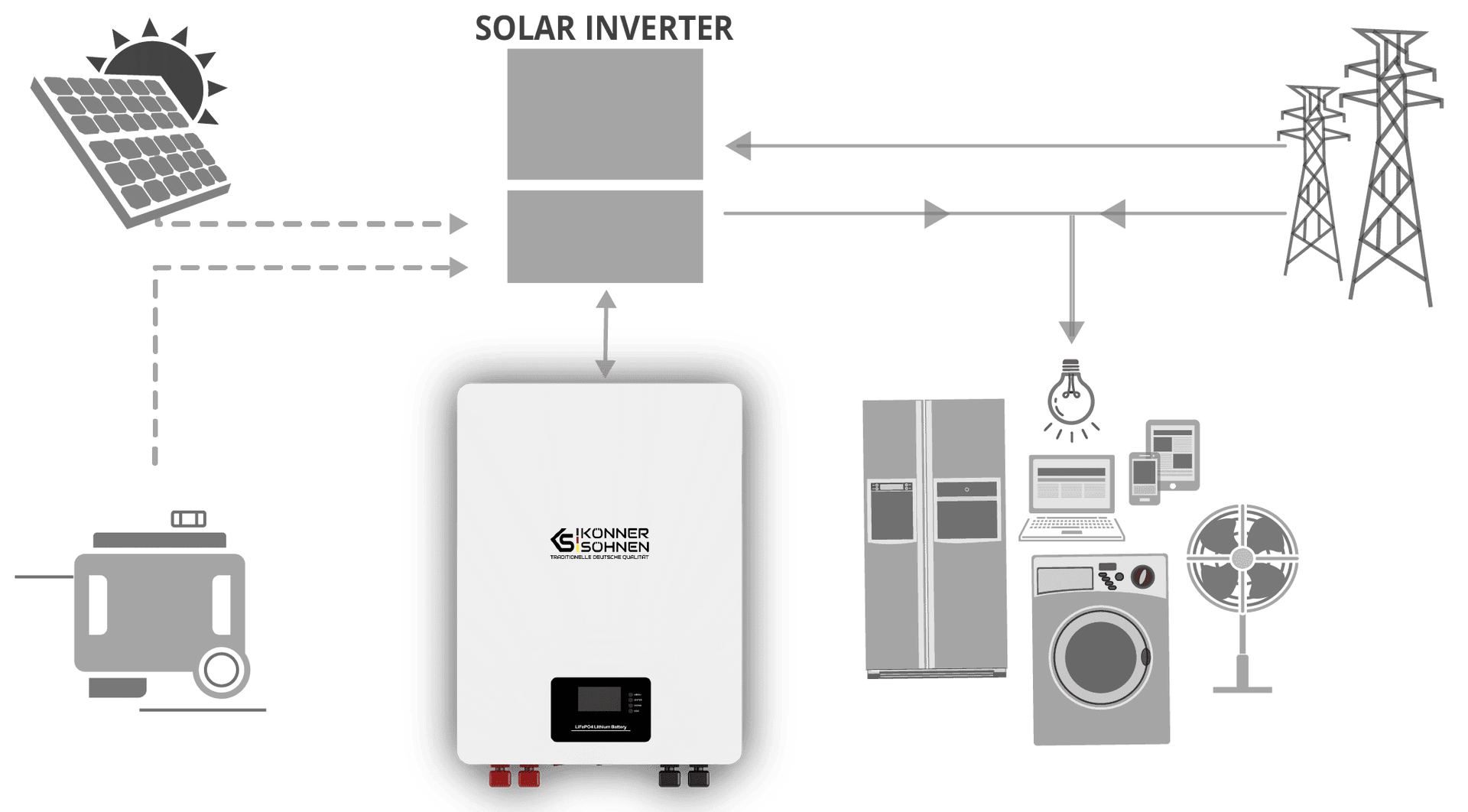

CONNECTION SCHEME

Can store energy in three different ways:

from solar panels, the central power grid, and a generator!

INCLUDED

• Connection cable for inverter

• Connection cable for PC

• Mounting set (mounting plate and anchor bolts)

• Ring terminals for power wire (bolt size 8)

• Wi-Fi antenna

AREAS OF APPLICATION

  • FOR BUSINESS

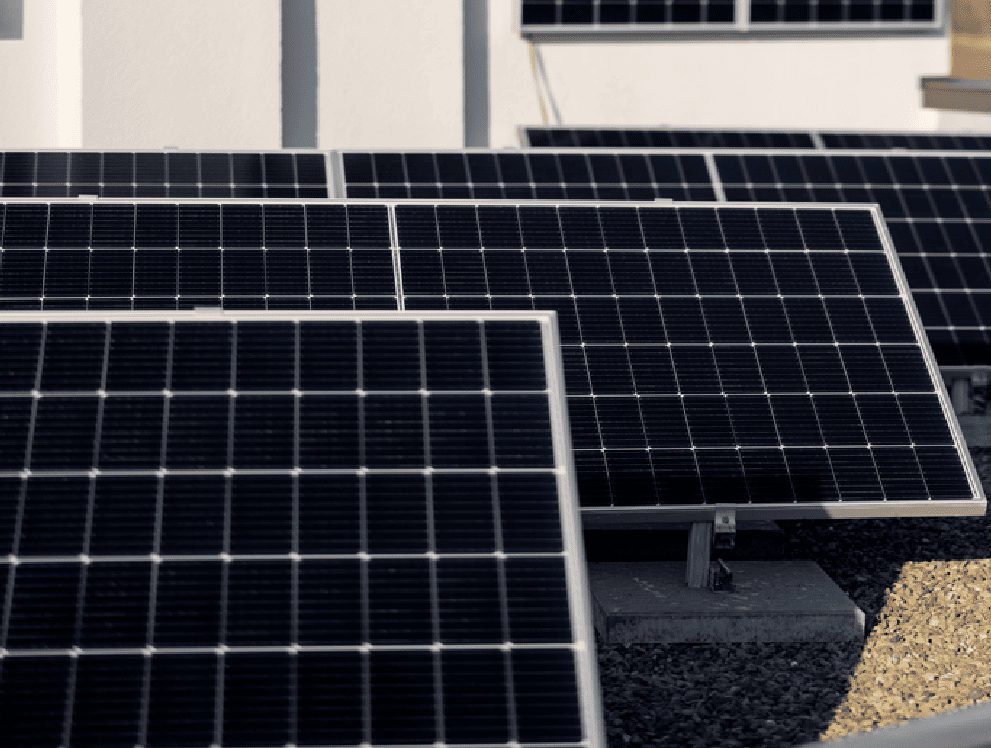

  • FOR BACKUP POWER SYSTEMS

  • FOR HOME

  • FOR OFFICES

  • FOR DATA CENTERS

  • FOR MONITORING SYSTEMS

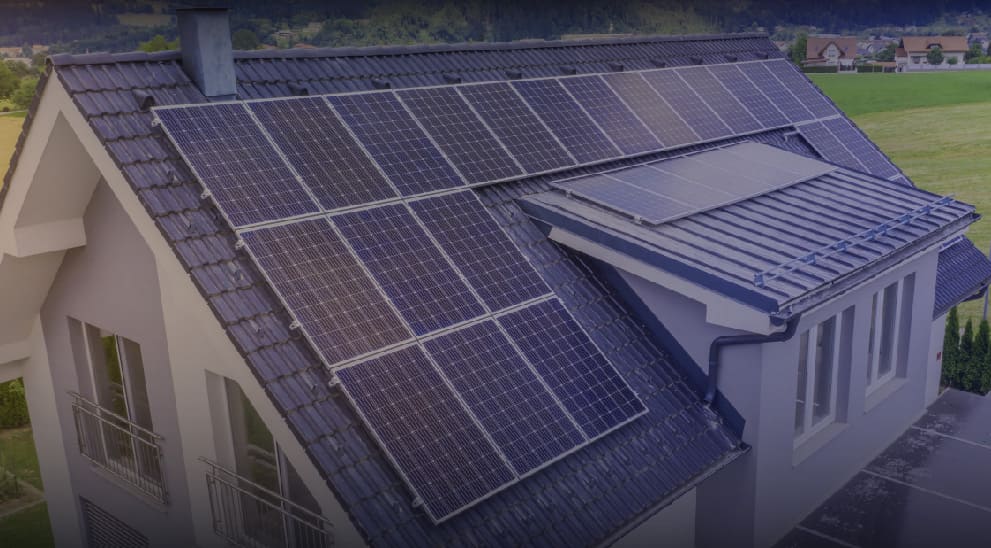

DOUBLE COST SAVINGS

Storing free solar energy during the day and using it in the evening significantly reduces electricity costs.

Additionally, you can save money by storing electricity from the central grid at night at half the cost and using it during the day or evening when electricity prices are highest.

Specification

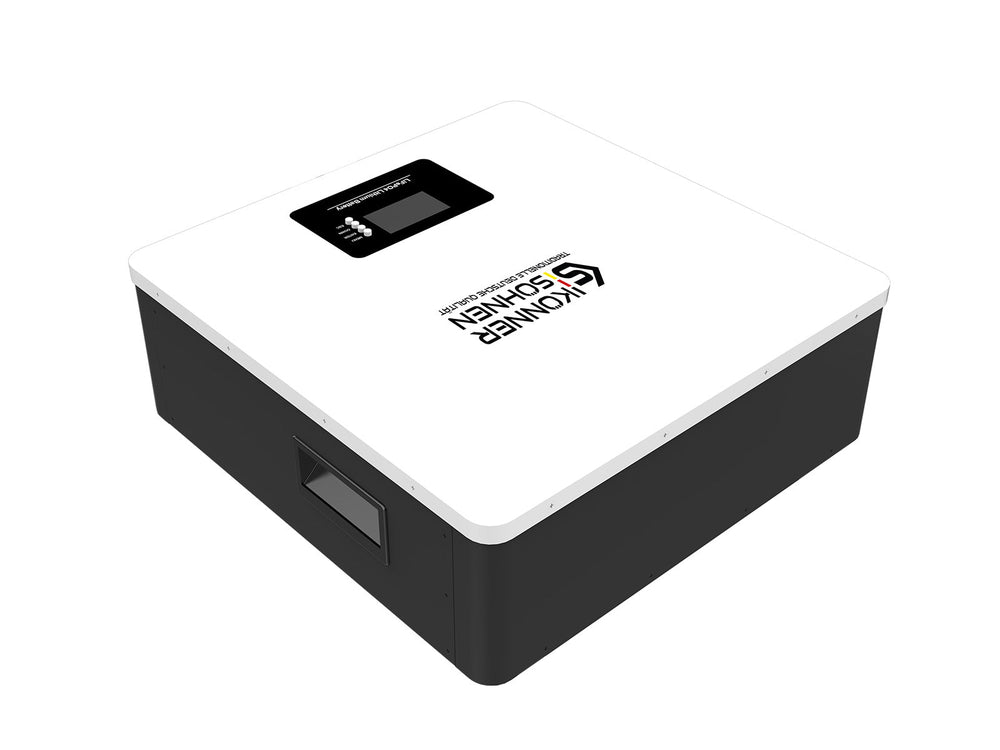

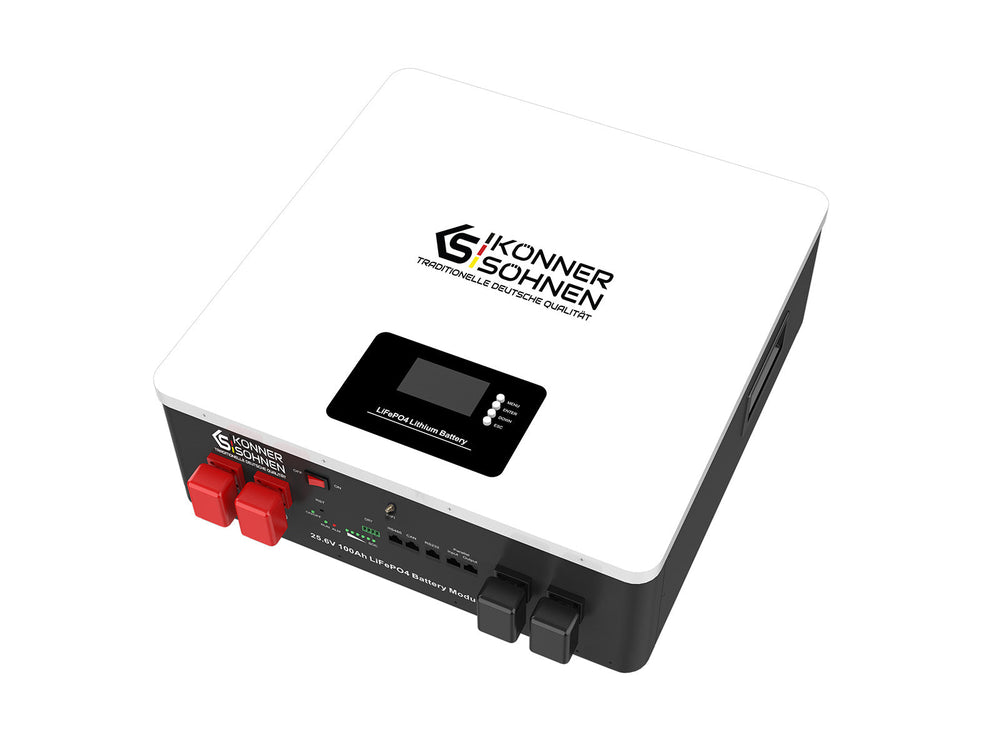

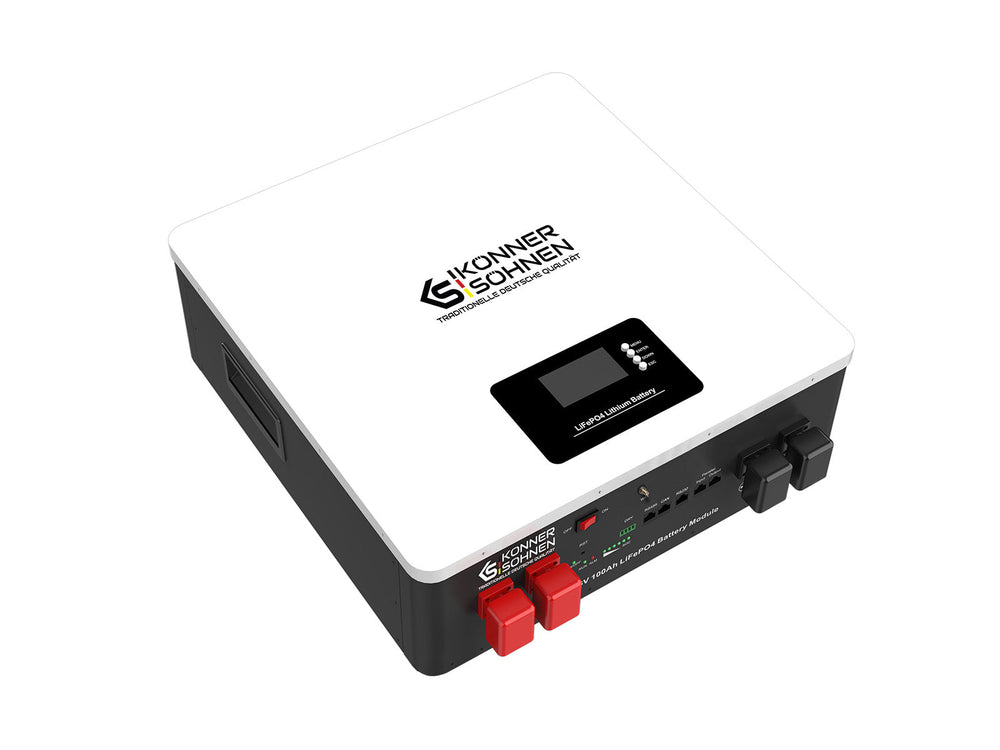

Lithium battery KS LB 24–100 Lithium battery KS LB 24–100
Battery type LifePo4 (lithium iron phosphate battery)
Rated voltage, V 25.6
Discharge voltage, V 21.6 – 29.2
Charging voltage, V 29.2
Recommended charging/discharging current 50А (0,5C)
Max charging/discharging current 100A (1С)
Communication RS-485 / RS-232 / CAN-bus
Depth of Discharge 95%
Protection class IP21
Operation temperature, °C 0 °C to 45 °C Charge, -10 °C to 45 °C Discharge
Net dimensions (LxWxH), mm 557x547x227
Net weight, kg 27
Gross weight, kg 27.0
SKU KS LB 24-100
Barcode 4260405368013
