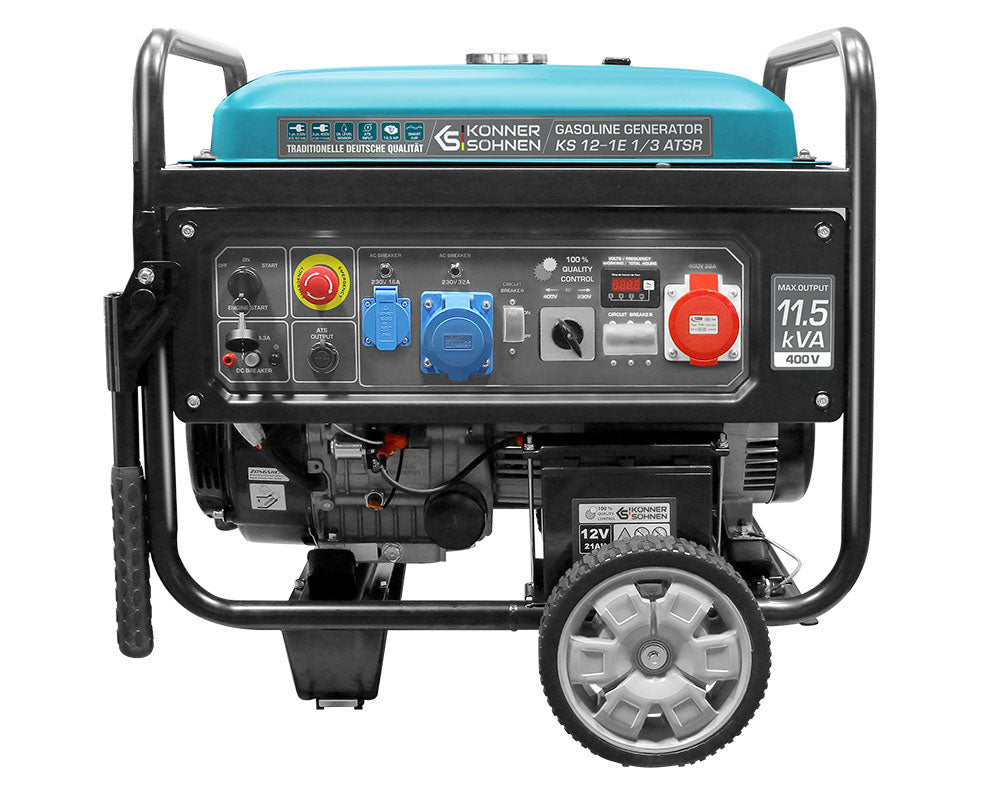

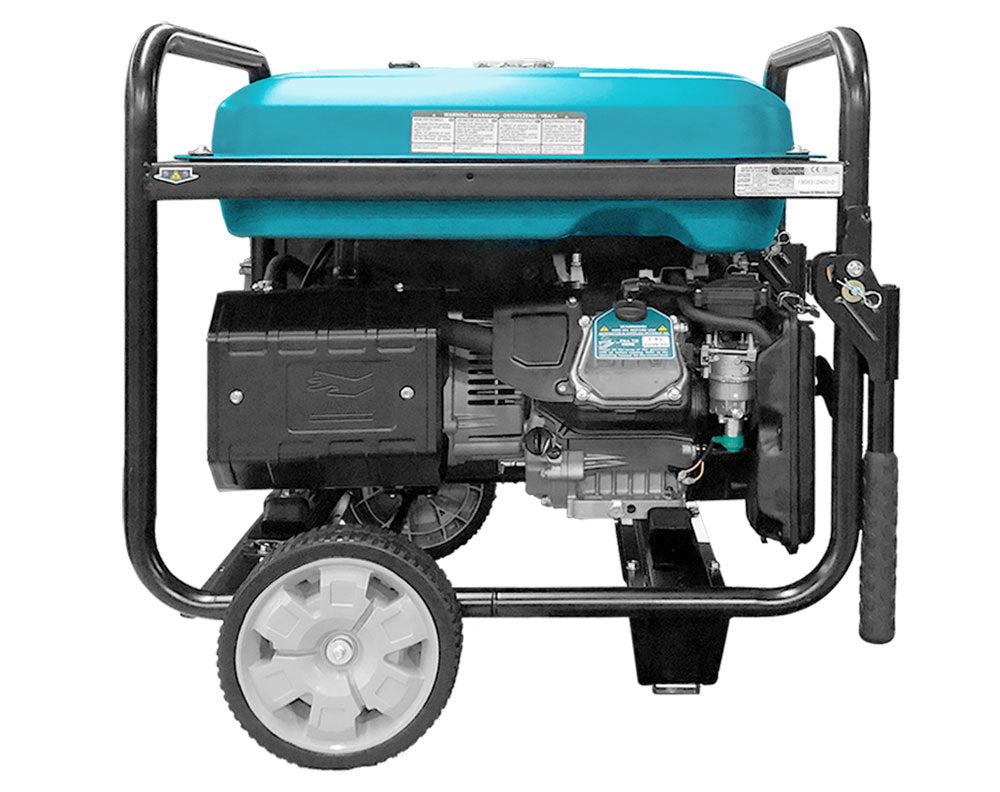

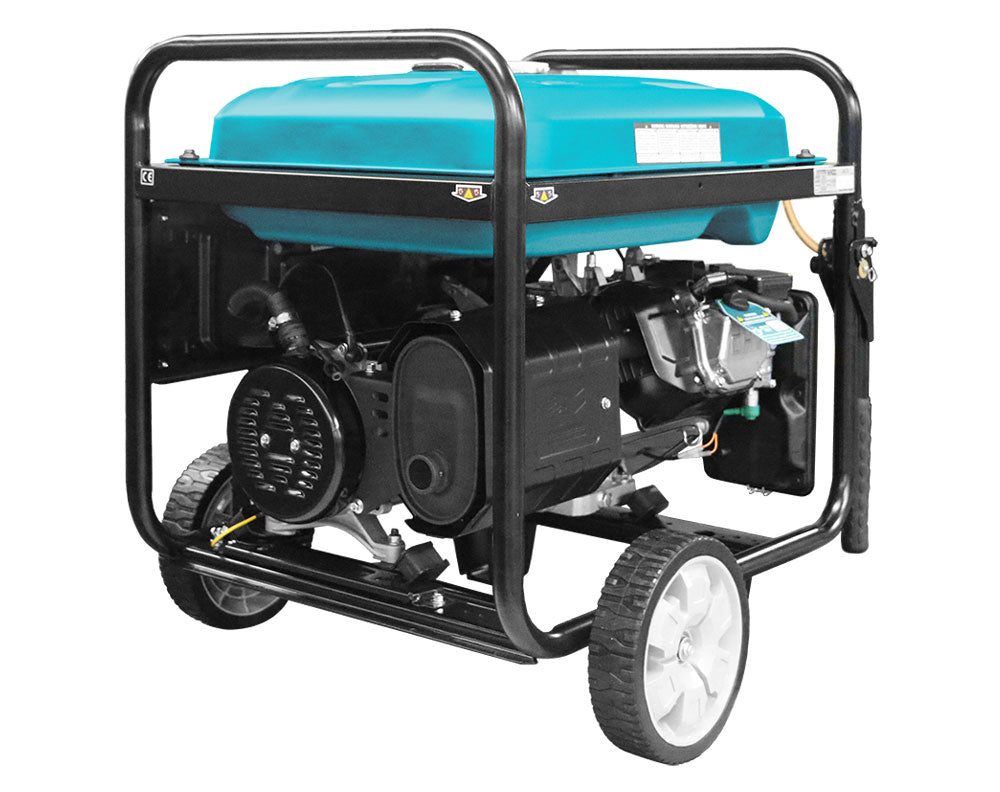

Gasoline generator "Könner & Söhnen" KS 12-1E 1/3 ATSR

Gasoline generator "Könner & Söhnen" KS 12-1E 1/3 ATSR

Name: Gasoline generator "Könner & Söhnen" KS 12-1E 1/3 ATSR
Brand: Könner & Söhnen
SKU: 4260405363421
Price: 875136.0 HUF
Availability: InStock

Available

875.136 Ft

Specification

Voltage, V:	230/400
Max/Nominal power (230V), kW:	8.2/8.0
Max/Nominal power (400V), kVA:	11.5/11.25
Engine start:	Manual/electric
Outlets:	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A

Specification

Voltage, V	230/400
Max/Nominal power (230V), kW	8.2/8.0
Max/Nominal power (400V), kVA	11.5/11.25
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	35/17
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A
Fuel tank volume, l	55
LED display	Voltage, frequency, working hours, oil alarm
Noise level Lpa (7m)/Lwa, dB	74/97
Power output DC, V/А	12/8.3
Engine model	KS 650
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.5/13.6
Fuel type	Gasoline
Crank case volume, l	1.4
Engine cylinder volume, cm3	625
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Accumulator (A·h)	21
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	790x705x680
Gross dimensions (LxWxH), mm	800x715x780
Net weight, kg	120
Gross weight, kg	170.0
SKU	KS 12-1E 1/3 ATSR
Barcode	4260405363421

Variants

Max Power: 8.2 kW

Gasoline generator "Könner & Söhnen" KS 10000E 1/3

Benefits

The advanced phase switching system makes the generator versatile in use
Convenience and comfort: with the ability to connect an ATS, there is no need to manually start the generator when the power goes out
Enhanced durability: alternators with 100% copper windings are more durable than those with aluminum windings
Thanks to the larger tank, you won't need to refuel the generator as often, saving you time and effort
You can easily monitor the generator's status with the multifunctional LED display and take action if any issues arise

Delivery

Free shipping: receive your order in just 1-5 business days.

Payment

We offer a wide range of secure and convenient payment methods, including:

Features

High-performance engine

Powerful and reliable 1-cylinders air-cooled engine (18.5 HP), high-performance and costeffective, and conform to European quality standards (including exhaust emissions and noise). Each engine has a corporate K&S stamp and an individual serial number in order to ensure the quality control of manufacture and after-sales service.

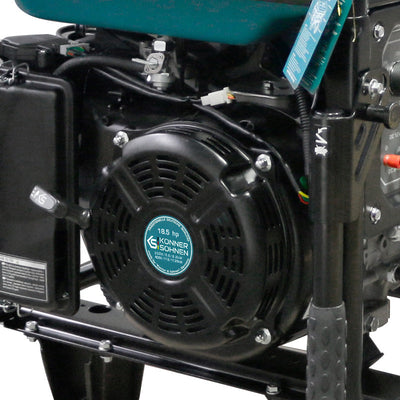

Easy start system

Easy start system allows you to start the engine quickly and to do this without much effort. More powerful models are additionally equipped with an electric start system.

Ergonomic control panel

The user-friendly ergonomic control panel allows easy control of the whole device, requires no special skills, and is equipped with sockets designed for removal of full power delivered by the generator and modern LED- display (hour meter, frequency, voltage, oil alarm). Panel is equipped with engine emergency switc.

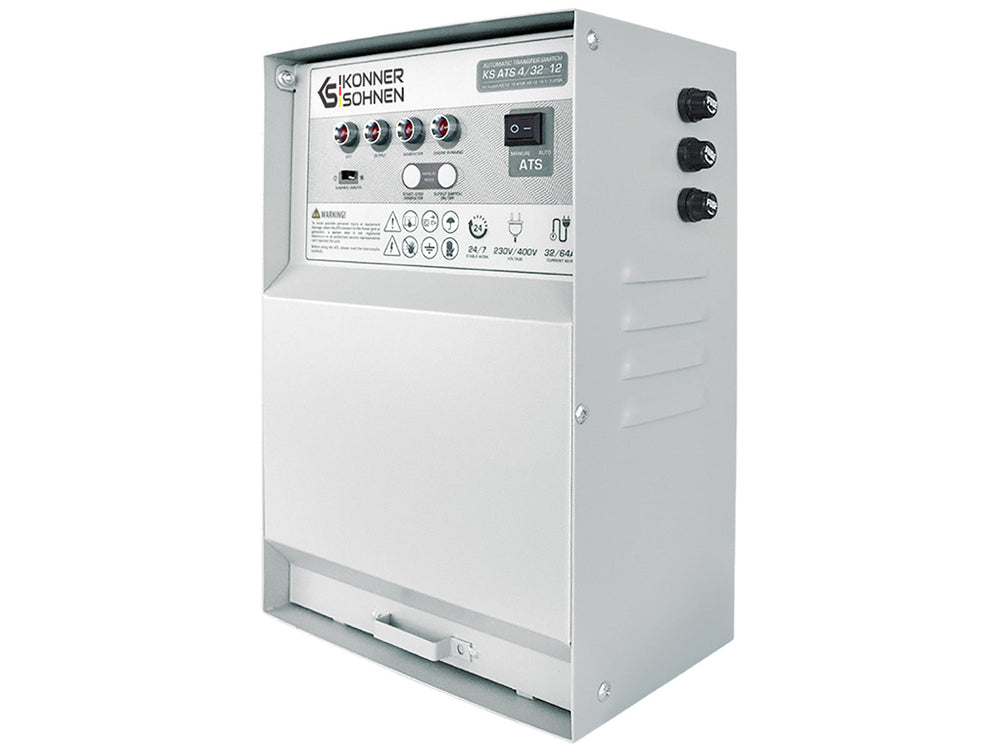

Ats output

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.

Alternator with 100% copper winding

TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

Steel tank

"Könner & Söhnen" generators are equipped with an enlarged steel fuel tank (55 l), which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.

Specification

Gasoline generator "Könner & Söhnen" KS 12-1E 1/3 ATSR

Voltage, V	230/400
Max/Nominal power (230V), kW	8.2/8.0
Max/Nominal power (400V), kVA	11.5/11.25
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	35/17
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A
Fuel tank volume, l	55
LED display	Voltage, frequency, working hours, oil alarm
Noise level Lpa (7m)/Lwa, dB	74/97
Power output DC, V/А	12/8.3
Engine model	KS 650
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.5/13.6
Fuel type	Gasoline
Crank case volume, l	1.4
Engine cylinder volume, cm3	625
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Accumulator (A·h)	21
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	790x705x680
Gross dimensions (LxWxH), mm	800x715x780
Net weight, kg	120
Gross weight, kg	170.0
SKU	KS 12-1E 1/3 ATSR
Barcode	4260405363421

Assembled in PRC.

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
